DLX VFT /MBB dosing pump from flow meter

Насос DLX VFT/MBB дозирования от расходомера

Features of ETATRON DLX pumps

  • The pump casing is made of anti-acid plastic, and the control panel is additionally protected with a film that blocks UV radiation.
  • The standard version (complete set) of the liquid end of ETATRON DLX pumps includes a PVDF (fluoroplastic) head equipped with double ball valves (except for models 2 l / h - 20 bar and 20 l / h - 3 bar). This makes it possible to dispense almost any aggressive reagents.
  • Built-in controllers for pH, RedOx, chlorine and conductivity analysis allow for accurate proportional dosing. Additionally, you can install flow and level sensors.
  • ETATRON DLX pumps have a wide range of models. Their performance ranges from 1 to 20 l / h. The models differ in the type of control, dosing mode and are selected according to the customer's requirements.
  • The pumps are mounted on a wall.
  • Protection against moisture and dust conforms to the IP65 class.
  • Versatility of application. ETATRON DLX pumps can be used for water treatment and water purification, disinfection of water in swimming pools, electroplating, food and chemical industries.

Manual

Dosing pump proportional dosing from an external impulse.

Dosing regimen:Permanent ON-OFF. Proportional PROP. Modes: multiplication 1xN, multiplication with memory 1xN (M), division 1: N.

Control type:Digital: 4 touch buttons operating modes: START / STOP, F (Functions), more, less.

Indication:5 LEDs: pulse frequency, modes: ON-OFF, 1xN, 1xN (M), 1: N.

Con10ts of delivery:1 PC. - diaphragm metering pump. 2 lm - flexible PVC intake hose **. 2 lm - discharge hose made of pressure PE. 1 PC. - reagent intake valve. 1 PC. - reagent injection valve. 1 PC. - passport / instruction manual.

Relay output. This relay will be closed (NC) when the memory buffer overflows in 1xN (M) mode. Characteristics: 1 pole, 250V, 5A (resistive load).

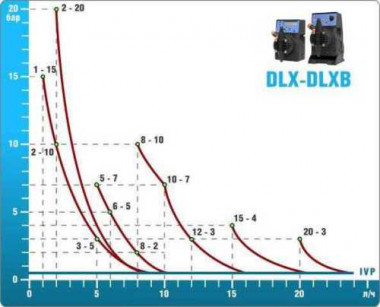

Versionvendor codeNameBack pressure performanceFlow part:
Pump head
l / hbarExecutionA type
0115 PLX39222V8 Diaphragm pump DLX-VFT /MBB 1-15 230V PVDF (1-15 /2-10 /3-5)
  • 1
  • 2
  • 3
  • 15
  • 10
  • 5
PVDF-Ceramic E
0220 PLX3903201 Diaphragm pump DLX-VFT /MBB 2-20 230V
  • 2
  • 20
PVC-Viton C
0507 PLX39038V8 Diaphragm pump DLX-VFT /MBB 5-7 230V PVDF (5-7 /6-5 /8-2)
  • 5
  • 6
  • 8
  • 7
  • 5
  • 2
PVDF-Ceramic E
0810 PLX39228V8 Diaphragm pump DLX-VFT /MBB 8-10 230V PVDF (8-10 /10-7 /12-3)
  • 8
  • 10
  • 12
  • 10
  • 7
  • 3
PVDF-Ceramic E
1504 PLX39231V8 Diaphragm pump DLX-VFT /MBB 15-4 230V PVDF
  • 15
  • 4
PVDF-Ceramic E
2003 PLX3922001 Diaphragm pump DLX-VFT /MBB 20-3 230V
  • 20
  • 3
PP-Viton B
