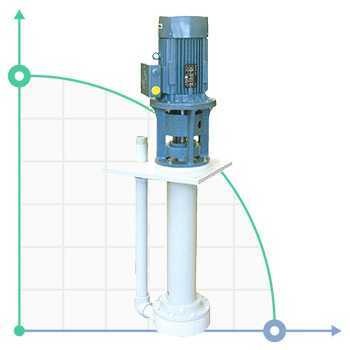

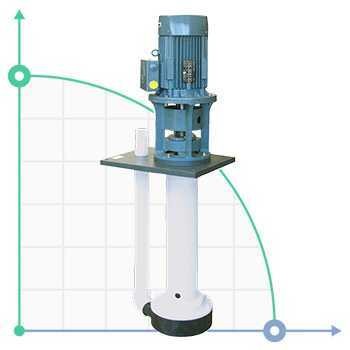

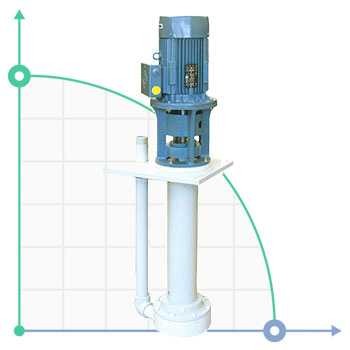

Semi-submersible chemical pump IM 155

Полупогружной химический насос IM 155


Semi-submersible chemical pump IM 155

  • Performance -up to 45 m³ /hour
  • Aggression -up to 28 m
  • Execution options:PP - PVDF - ATEX
PDF IM 155 Chemical vertical pump
Size: 271 Kb

Semi-submersible chemical pump IM 155for pumping chemical liquids, the pumping part is immersed in the container, while the motor remains outside. The depth of the submerged part ranges from 500 to 1250 mm.


Main features of the IM 155 centrifugal pump

  • Max. vertical centrifugal pump capacity up to 45 m3 /h
  • The pump is made without welded joints
  • Pumping of liquids containing insoluble particles up to 2 mm.
  • Can be used with highly contaminated liquids
  • Can be supplied without motor; the pump is completely removable
  • Replacing the engine without dismantling the pump
  • Simple service and replacement of spare parts

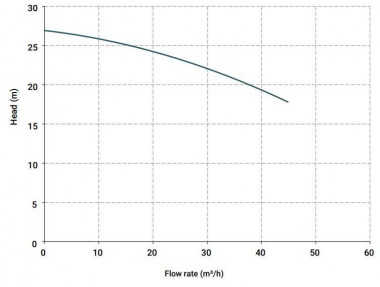

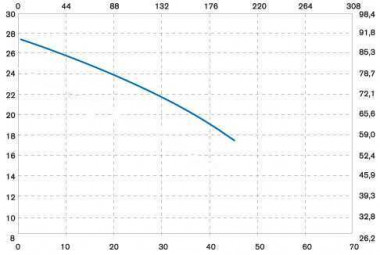

Performance graph

График производительности - IM 155

Specifications

Fence connection G 2 1/2 ”f
Reset connection G 2 ”m
Max. performance 45 m3 /h
Max. head * 28 m
Seals TL - TS
Engine power 5.5 kW - 7.5 HP
engine's type IP55 - Class F - 2 poles
230 / 400V 50 Hz - 3 ~ 2900 rpm
Max. diameter of solids 2 mm
Max. viscosity 500 cPs
Execution material PP PVDF
Max.temperature 65 ° C 95 ° C
Net weight (with stand L = 500 mm.): 82 kg 84 kg
Net weight (with stand L = 800 mm.): 85 Kg 87 kg
Net weight (with stand L = 1000 mm.): 87 kg 89 kg
Net weight (with stand L = 1250 mm.): 90 Kg 92 kg
