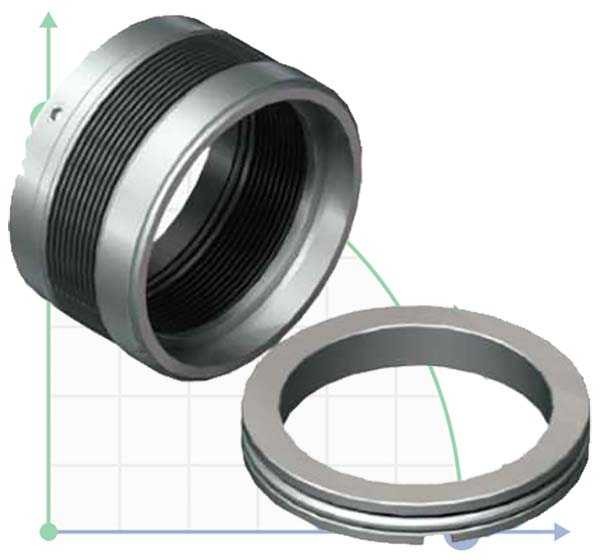

Metal bellows seals R-680 60, SIC/SIC, VITON, AM350/316
Description
Mechanical seal R-680 (676/670/680)
Mechanical seal type R-680 rotary bellows c AM350 alloy provides corrosion resistance in aggressive environments with high levels of abrasives. Its design is intended for use in the chemical, water and waste water, pulp and paper industries and utilities. The sealing ring has no compensation function, so bellows can move without moisture.
Analogue of John Crane 680, MB-J01, HW680.
Operating limits:
Pressure: ≤2, 1 MPa
Speed: ≤25 m/s
Temperature: -20ºC ~ + 200ºC
Versions:
The rotating ring (SiC / SAR (carbon) / TC)
Stationary ring (SiC / TC)
Rubber (VITON / PTFE)
Metal parts (AISI316L / AM350 / Inconel718 / Titanium / Hastelloy-C / AIIoy-20)
