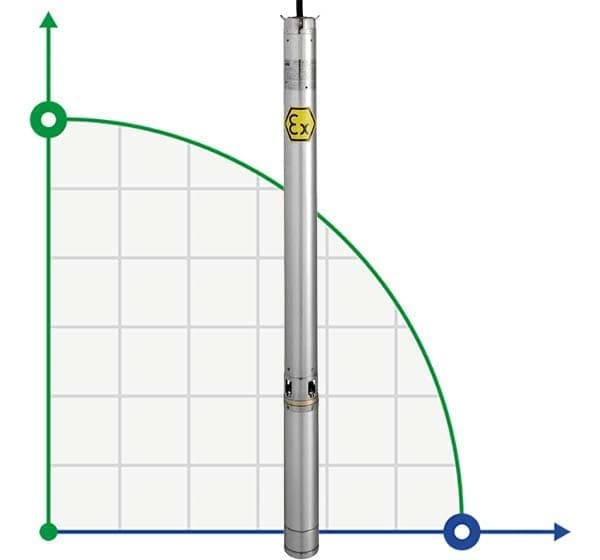

Submersible depth pump 4 inch ATEX SIGMA EX 11, 220V
Features Submersible depth pump 4 inch ATEX SIGMA EX 11, 220V
PumpType
borehole
Drive Type
electric
Feed height, m
65
Height, mm
1 260
Max. head, m
65
Description
ATEX pumps in accordance with Directive 2014/34 / EC can be installed in explosive environments in accordance with the ATEX marking.
Features: multi-stage centrifugal electric submersible pumps for 4-inch Wells; external pump body, discharge port, suction port, shaft and other stainless steel components; stainless steel check valve installed in the discharge head; pumped liquid temperature: no more than + 40 °C; available version for permanent immersion in bicarbonates (ID EX series); available in Aisi 316 version.
Motor: 2-pole asynchronous motor, 50 Hz, 2850 rpm.; Class F insulation; IP68 protection; operating voltage: single-phase 220V, three-phase 380V.
Accessories: control panel, intrinsically safe module with ATEX power supply circuit, ATEX level controller with 5, 10 or 20 m long electrical cable, ATEX electronic level sensor (or ATEX id), electrical cable for connection according to the selected version and pumped liquid.
